220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant

Product Categories
Foshan Nanhai Nanyang Electric Appliance & Motor Co., Ltd.
Contact Now

220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant

  • 1
  • 2

Brand Name : NANYOO or OEM

Model Number : FM-1209N-2(Y)

Certification : CE CB SASO CCC

Place of Origin : China

MOQ : 1 PCS

Price : Negotiated

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 18000 Per month

Delivery Time : 30-35 work days

Packaging Details : Carton With Foam Protection

Type : Air Curtain, Ambient Cross-flow model, Commercial & Industrial, Other

Product name : Air Curtain, Residential Commercial door High Speed wind small Air Curtain, Door/ Window / Wall Air Curtain

Mounting : Wall / Window Mount, Ceiling Mount, Door/ Wall/ Window Mount, Other

Operating voltage : 230 VAC, 220V, 115 VAC, Other

Material : Metal

Power supply : 100~240V 50/60Hz

Noise : 44db

Weight : 12~26.5KG

Size : 0.9m

After-sales service provided : Free spare parts

Application : Commercial, shopping malls, airports, Restaurant, warehouses

Contact Now

High Wind Speed / Large Air Volume Door Air Curtains Use For Your House / Restaurant

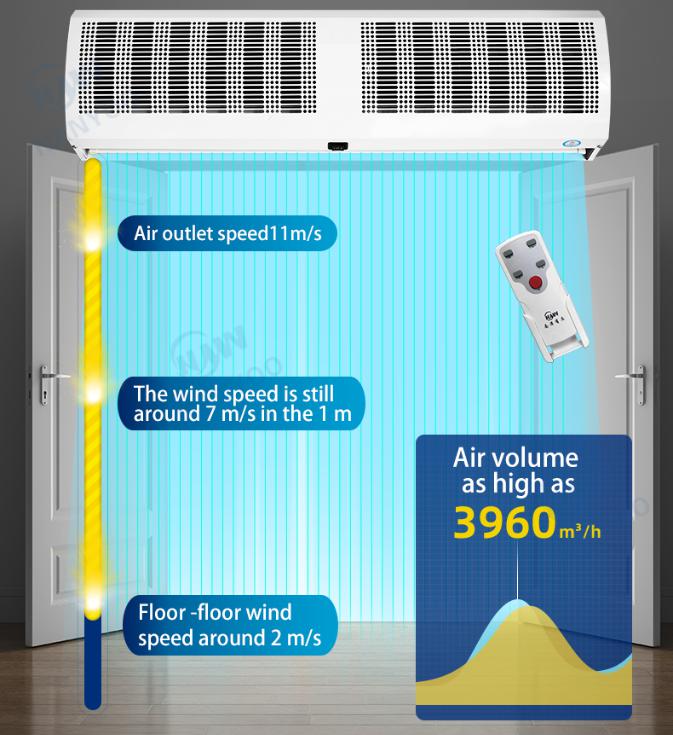

HIGH WIND SPEED / LARGE AIR VOLUME / SEAMLESS PARTITION

Air outlet speed 11 m / s

The wind speed is still around 7 m / s in the 1 M

Floor - Floor wind speed around 2 m / s

220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant

Description

Model Voltage /Frequency Input Power Air Velocity Air Volume Noise Net Weight Unit Size Carton Size
(V/HZ) (W) (M/S) (㎥/h)CFM (dB) (kg) (MM) (MM)
FM-1209N-2(Y) 220 / 50 150 11 1780 ≤45 12.8 900x220x195 960x280x250
FM-1212N-2(Y) 220 / 50 180 11 2370 ≤47 15.7 1200x220x195 1260x280x250
FM-1215N-2(Y) 220 / 50 220 11 2970 ≤47 19.9 1500x220x195 1560x280x250
FM-1218N-2(Y) 220 / 50 280 11 3560 ≤50 23.0 1800x220x195 1860x280x250
FM-1220N-2(Y) 220 / 50 320 11 3960 ≤51 24.5 2000x220x195 2060x280x250

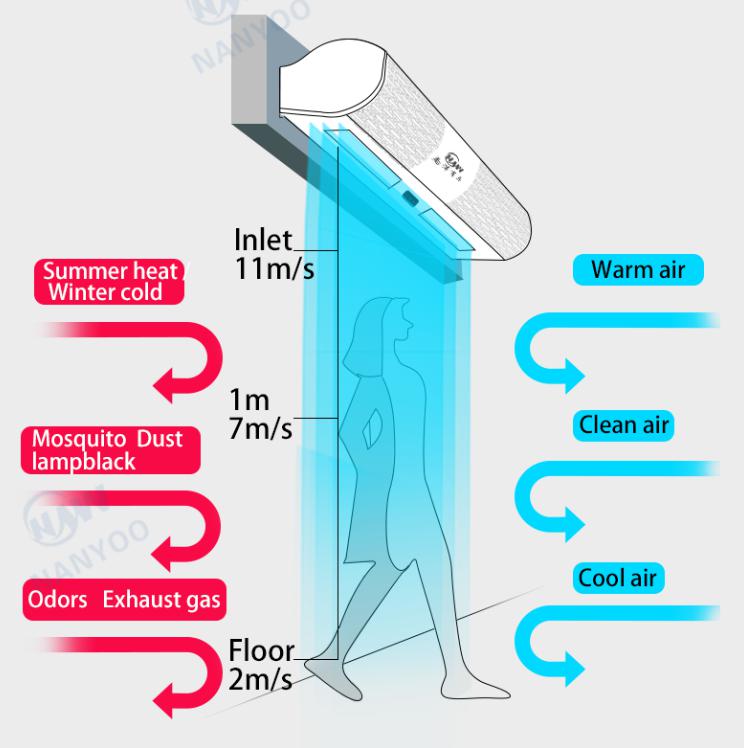

STRONG AIR CURRENT / SEAMLESS PARTITION

Cross flow fan large air volume N series , Mounting Height 2.5 M

220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant

It includes multi-perspective views

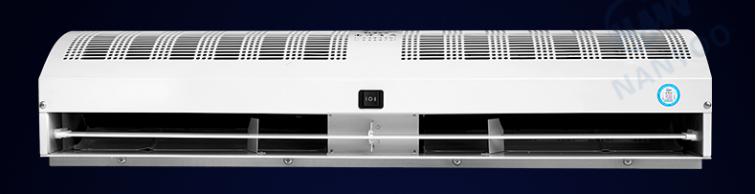

Front view >>

220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant

Back View >>

220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant

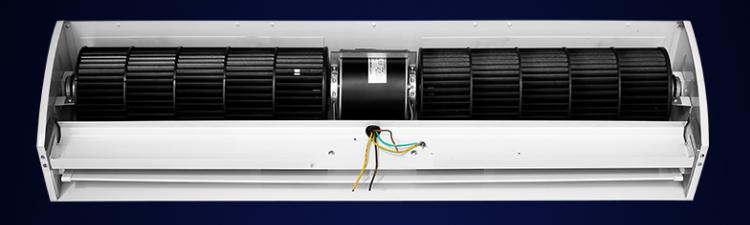

Impeller details >>

220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant

Company Profile

220V 50HZ 11m/S Cross-Flow Door Air Curtain Use For Home/ Restaurant
Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO)
NANYOO was set up in March 1987. Over more than three decades of development since its founded, it has become a professional scientific and technological enterprise which specializes in the research and development, production and sales of air curtain, ventilator and fresh air ventilation products.

NANYOO has a large-scale processing and testing equipment more than 100 sets. The company has passed the iso9001:2000 international quality system management certification, occupational health and safety management system certification, national compulsory certification CCC certification. Also, we have the international certification like CE, CB, SASO and ROHS environmental protection report.
